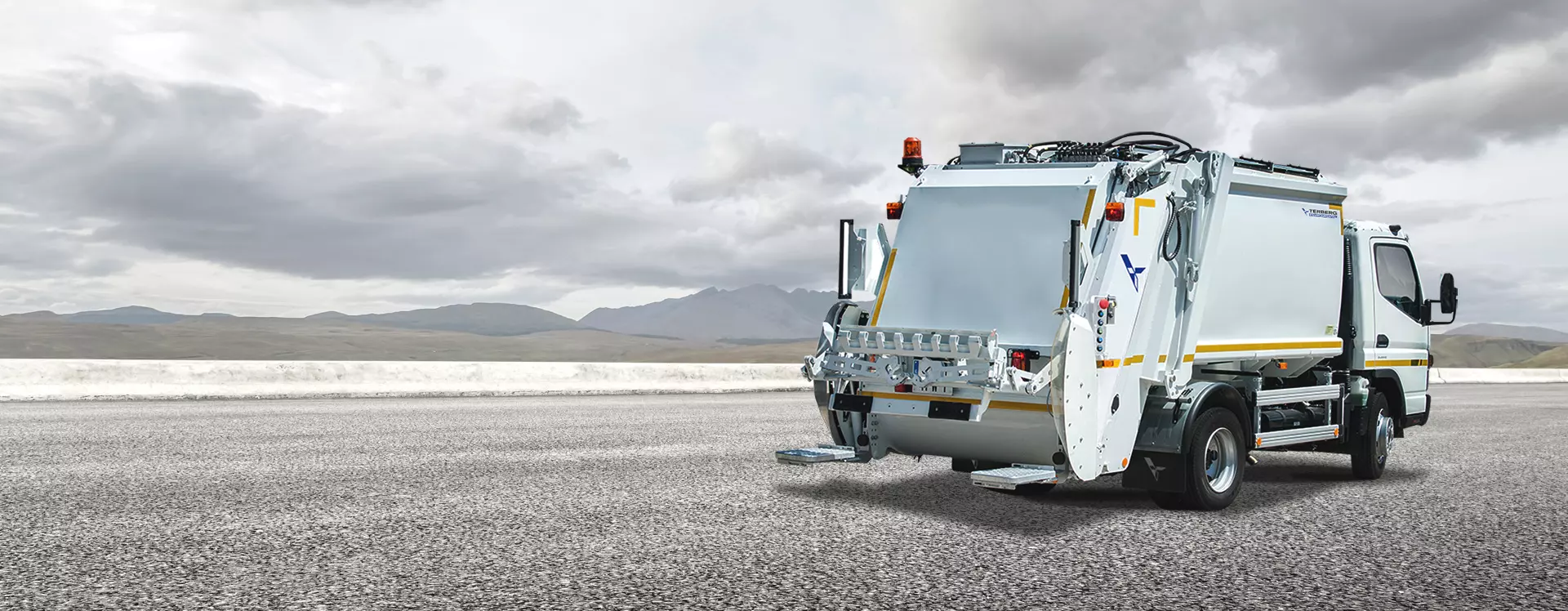

Olympus AЯT MINI

COMPACT REAR LOADER



Our class leading compact Olympus fine tuned
for Asian and
transcontinental operations

Carrying forward the genes of the Olympus the Mini is ideally suited to collections in narrow areas. Capacities from 6-10m3



YYYNNNN Bin Icon Strip.svg



SPECIFICATIONS

  • Volume: 6 - 10m³
  • Overall body length (std. tailgate): 4030 to 5487 mm
  • Overall Body width: 2000mm
  • GVW: 7.5 - 12 tonnes
  • Compaction Cycle Time, Nominal: 15 sec
  • Tailgate capacity WIDE (calculated to EN1501 - 1400mm rave height): N/A
  • Tailgate capacity NARROW (V3 calculated to EN1501 with 1400mm rave height): 1 m³
  • Hydraulic Requirements: 60 l/min
  • Operating pressure: 170 bar

Specifically developed for operation in Asia, Africa, GCC, and LATAM markets Olympus Mini ART is a rear loading refuse compaction vehicle for the collection of domestic and organic waste as well as recycling materials in pedestrian, city centre and rural areas with narrow streets and restricted access that requires a high level of manoeuvrability. Compact and with proven technology, Olympus MINI ART offers high quality and reliability. Note: This product is specifically engineered for use out of Europe. Olympus MINI ART encompasses many design elements suited to overseas operations, it is therfore not wholly complaint to EN1501 norm, which is required inside Europe.
