Hero Block

PBUV

ORGANIC WASTE BODY

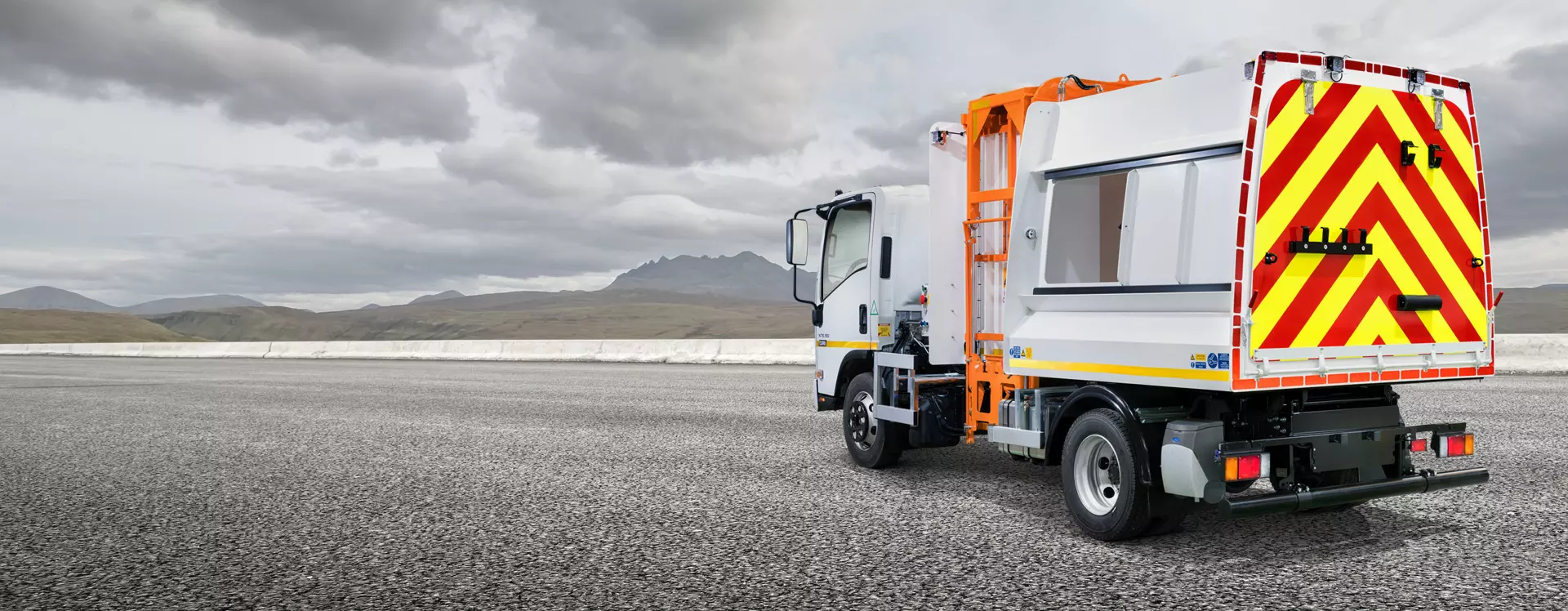

A perfect polymer bodied solution for low to mid volume organic waste collections.

The PBUV is available in two sizes with the larger 8.5 cubic metre volume version on a 7.5 tonne GVW chassis giving a typical usable payload of 2750 kgs*.



YYNNNNN Bin Icon Strip.svg



SPECIFICATIONS

  • Volume: 6.5 to 8.5m³
  • Wheelbase: 3504 to 3365mm
  • GVW: 3.5 to 7.5 tonnes
  • Axle Configuration: 4x2
  • Overall Length: 5650mm
  • Overall Width: 2100 to 2200mm
  • Compartments: 1
  • Internal doors: N/A
  • Number of lifts: Up to 1 x TLL360 lift
  • Sound reduction kit: N/A

A perfect polymer bodied solution for low to mid volume organic waste collections

PBUV is part of a range of solutions developed for the tough demands of food and other organic waste collections, providing easily cleaned, robust solutions that will carry the materials safely in accordance with all relevant regulations.

The PBUV is perfect for where maximum payload versus body weight is essential and surprisingly, the PBUV body is constructed from a robust Polypropylene material.
As well as being able to withstand daily steam cleaning, the body won't corrode and is leakproof to a height of 300mm.

PBUV range comes complete with (or without, if you wish) our robust TLL360 bin lift that gives a safe and efficient lift for up to 360 litre EN840-1 containers.
An optional, removable polypropylene pannier that fits onto the TLL360 bin comb to provide a efficient hand or bag loading solution is available.

Additionally, materials can be hand loaded into the body via the side mounted sliding hatches.

BIO
WASTE
FOOD
WASTE
ABSORBENT
HYGIENE
PRODUCTS
(AHP)
CANINE
WASTE

The PBUV is available in two sizes with the larger 8.5 cubic metre volume version on a 7.5 tonne GVW chassis giving a typical usable payload of 2750 kgs*.

*typical payload when mounted to Isuzu N75.190 7.5 tonne GVW 4 x 2 chassis

PBUV comes with a tipping body for simple discharge of materials. Terbergs own underfloor tipping gear allows simple and safe discharge of the load collected by opening the rear door and tipping the PBUV’s body.
