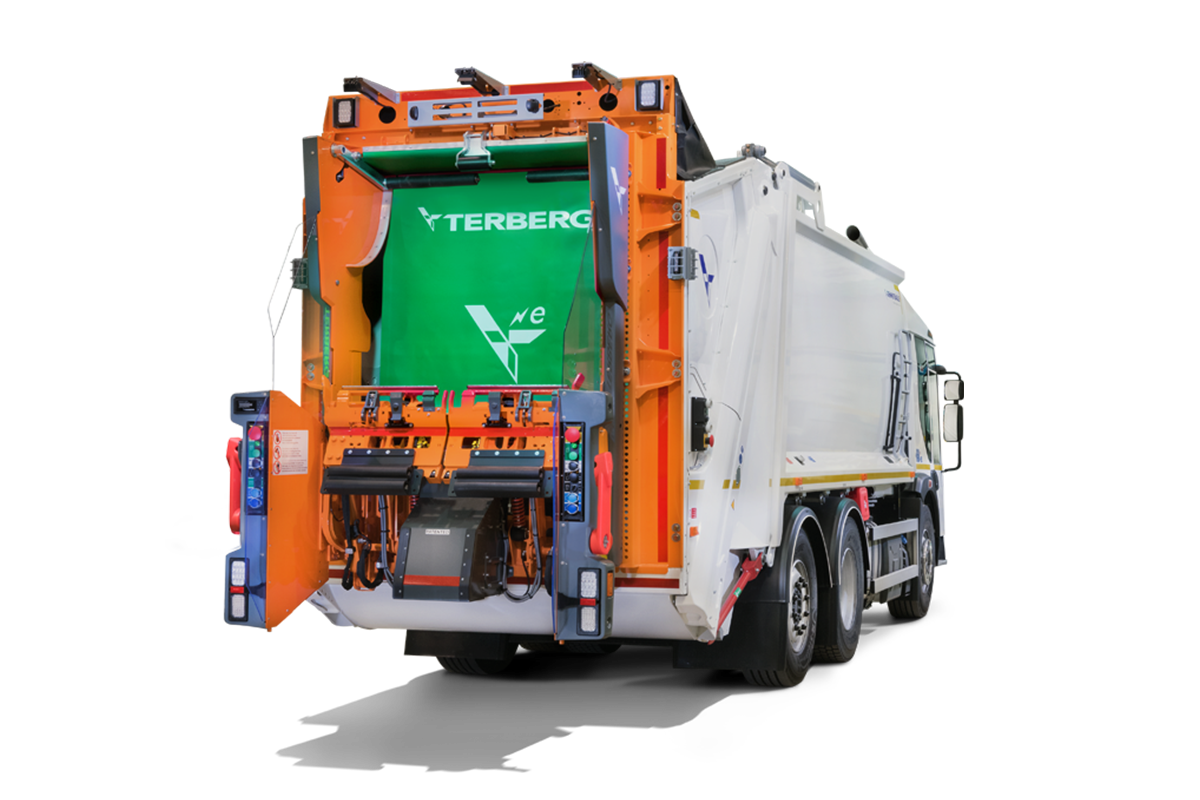

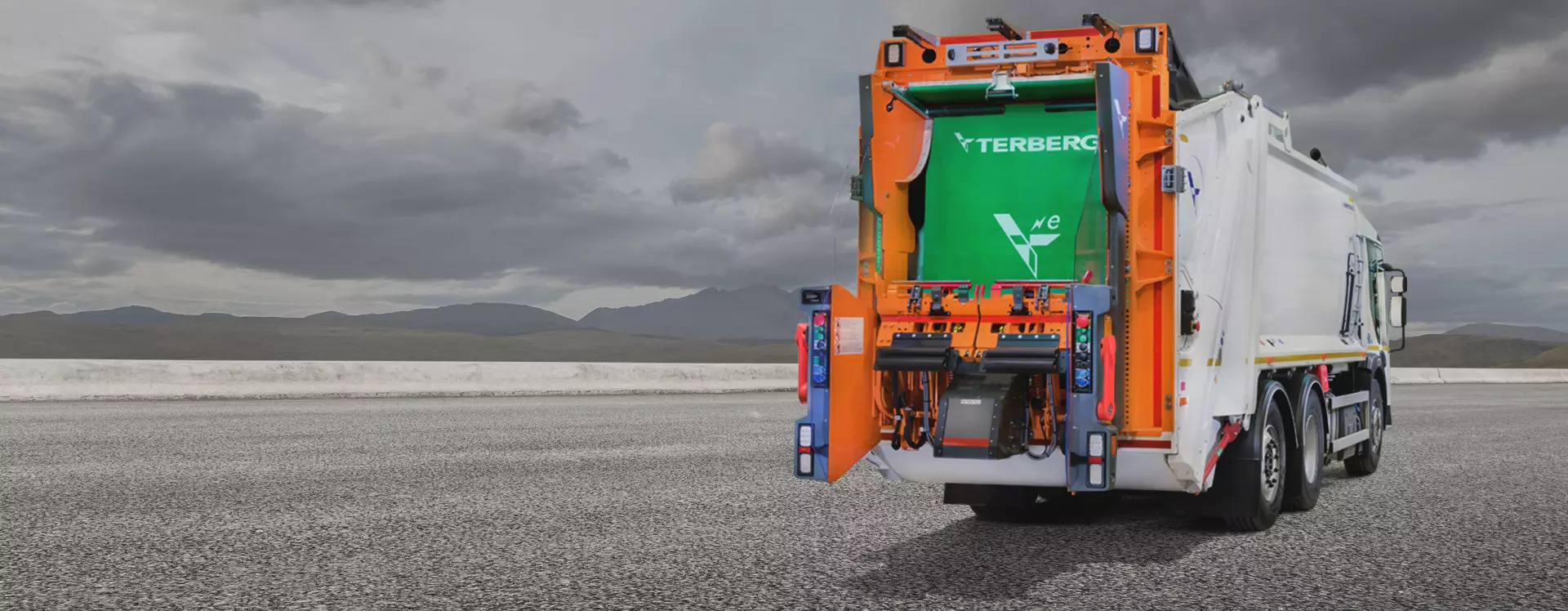

OmniDEKA (E)

ELECTRIC HIGH LEVEL AUTO REAR LOADING BIN LIFTING SYSTEM



Just like the OmniDEKA, our low voltage, low noise electric OmniDEKA (E) is the product of some innovative thinking from ground up to deliver a high level automatic electric bin lift solution.



YYYNNNN Bin Icon Strip.svg



OmniDEKA (E) comes packed with the same functionality, flexibility and features of the regular OmniDEKA but offers significant noise and emission reductions thanks to our superb 24v electric drive system that requires no additional engine revs during operation.

OmniDEKA (E) is a customer favourite and combines all of the proven features of previous high level lifts together with a considerable number of innovative new features to give you better efficiency, higher levels of safety and lower cost of operation.

SPECIFICATIONS

  • 2-wheel containers 6-7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 61 dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 650 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

OmniDEKA (E) offers greater flexibility than ever before to suit a variety of applications, depending on the RCV body variant, mounting heights from 1150mm up to a maximum height of 1675mm are possible.

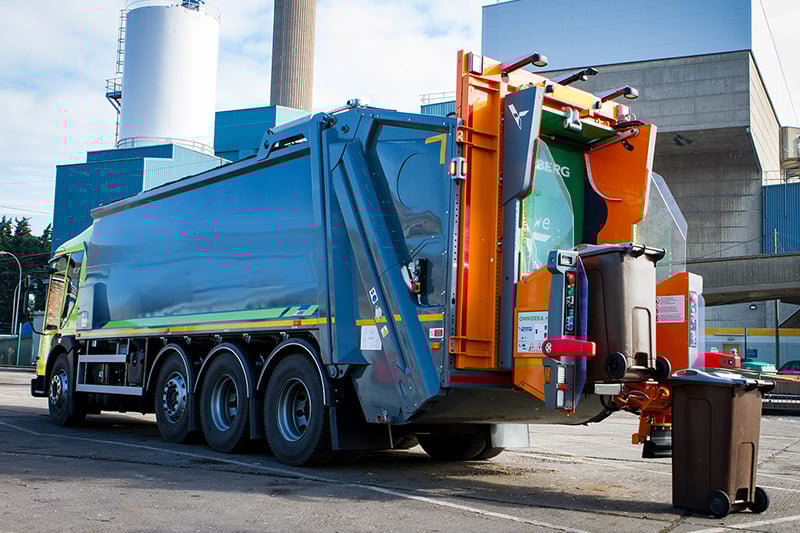

Being a high-level lift, the OmniDEKA (E), especially when combined with our Olympus RCV, offers a superb tailgate swept volume to minimise the number of packing cycles and to maximise efficiency via the twin split lifting chairs that seamlessly switch between two wheel bin collection in high volume, high density urban areas and 4-wheel commercial containers. The dynamic split catcher bar operates automatically as required and moves back to its home position following container discharge.





OmniDEKA (E) Electric Bin Lift System

The OmniDEKA (E) represents the ideal high level automatic solution with the added benefit of low noise levels for our Olympus range of RCVs along with other RCV bodies.
