OmniDEKA

HIGH LEVEL AUTO REAR LOADING BIN LIFTING SYSTEM



Introducing OmniDEKA, the result of intensive development from the ground up to provide a fresh take on how an automatic high-level binlift should be built.



YYYNNNN Bin Icon Strip.svg



OmniDEKA comes packed with functionality, flexibility and features, all built upon a foundation of years of experience, generations of bin lifts and listening to customer feedback.

OmniDEKA is our front line high level automatic split bin lift and combines all of the proven features of previous high level lifts together with a considerable number of innovative new features to give you better efficiency, higher levels of safety and lower cost of operation.

SPECIFICATIONS

  • 2-wheel containers 6-7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 61 dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 650 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

OmniDEKA offers greater flexibility than ever before to suit a variety of applications, depending on the RCV body variant, mounting heights from 1150mm up to a maximum height of 1675mm are possible.

The OmniDEL is the best available low level automatic solution for all RCV bodies including our Olympus range of RCVs.

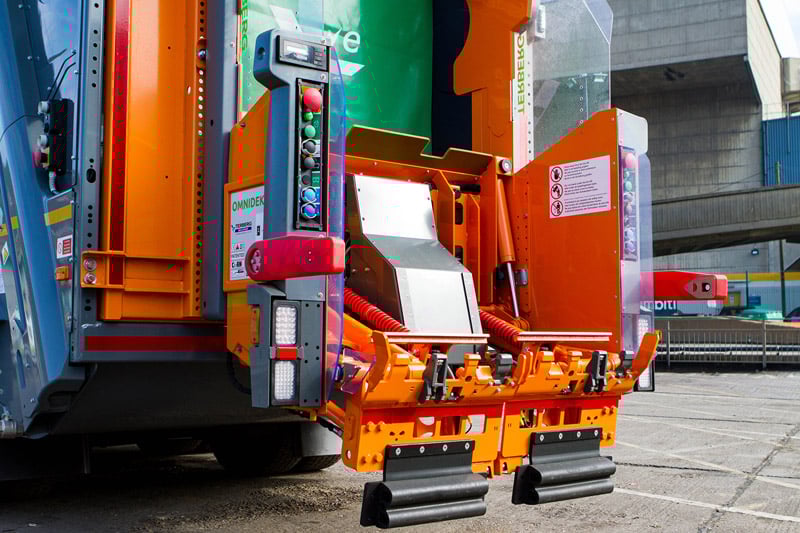

Being a high-level lift, the OmniDEKA, especially when combined with our Olympus RCV, offers a superb tailgate swept volume to minimise the number of packing cycles and to maximise efficiency via the twin split lifting chairs that seamlessly switch between two wheel bin collection in high volume, high density urban areas and 4-wheel commercial containers.

The dynamic split catcher bar operates automatically as required and moves back to its home position following container discharge. Additionally, OmniDEKA cleverly stores Kinetic energy during the lifting cycle to provide an energy free chair return under gravity, which in turn reduces noise, saves energy and keeps wear and tear to a minimum

The OmniDEKA represents the ideal high level automatic solution for our Olympus range of RCVs along with other RCV bodies.
