OLYMPUS TwinPack

REAR LOADER



The 2.5 m wide Olympus TwinPack two-chamber construction is available with capacities from 16 to 27 m³.



YYYNNNN Bin Icon Strip.svg



The 2.5 m wide Olympus TwinPack two-chamber construction is available with capacities from 16 to 27 m³. Olympus TwinPack is known all over the world and is also available in a narrow version of 2.2 m.

SPECIFICATIONS

  • Volume: 12 - 27m³
  • Overall body length (std. tailgate): 5010 to 7910 mm
  • Overall Body width: 2530 mm
  • GVW: 18 - 32 tonnes
  • Compaction Cycle Time, Nominal: 18 sec
  • WIDE load box capacity: 35/65: 0.62/1.24 m³
    50/50: 0.93 m³
  • Hydraulic power requirements: 35/65: 105 l/min, 50/50: 140 l/min
  • Operating pressure: 210 bar

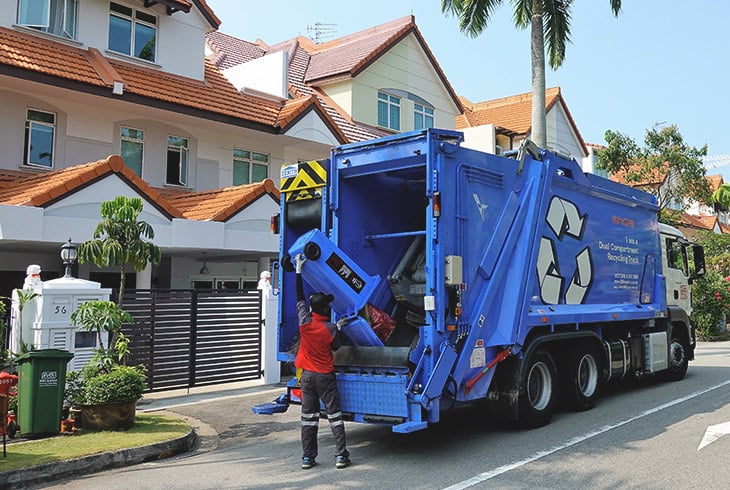

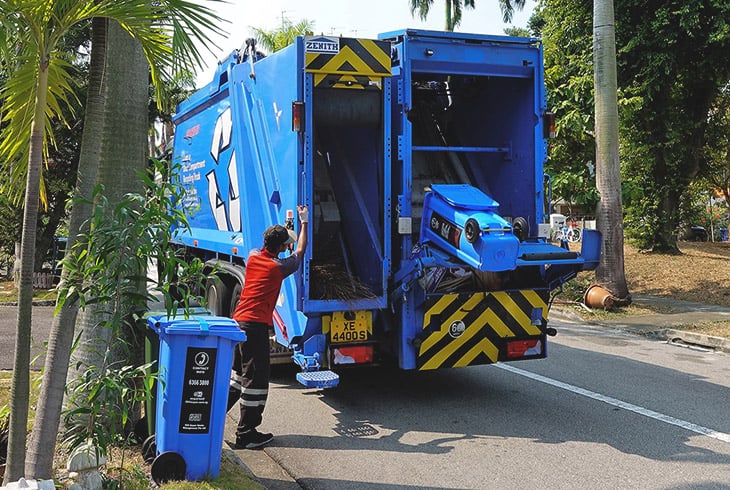

The internationally renowned Olympus TwinPack two-chamber load box is designed to collect two types of waste simultaneously. It was designed for installation on Dennis Eagle chassis and many other brands. The slim version of the Olympus TwinPack body is precisely tailored to a narrow chassis variant, such as the Elite 6.

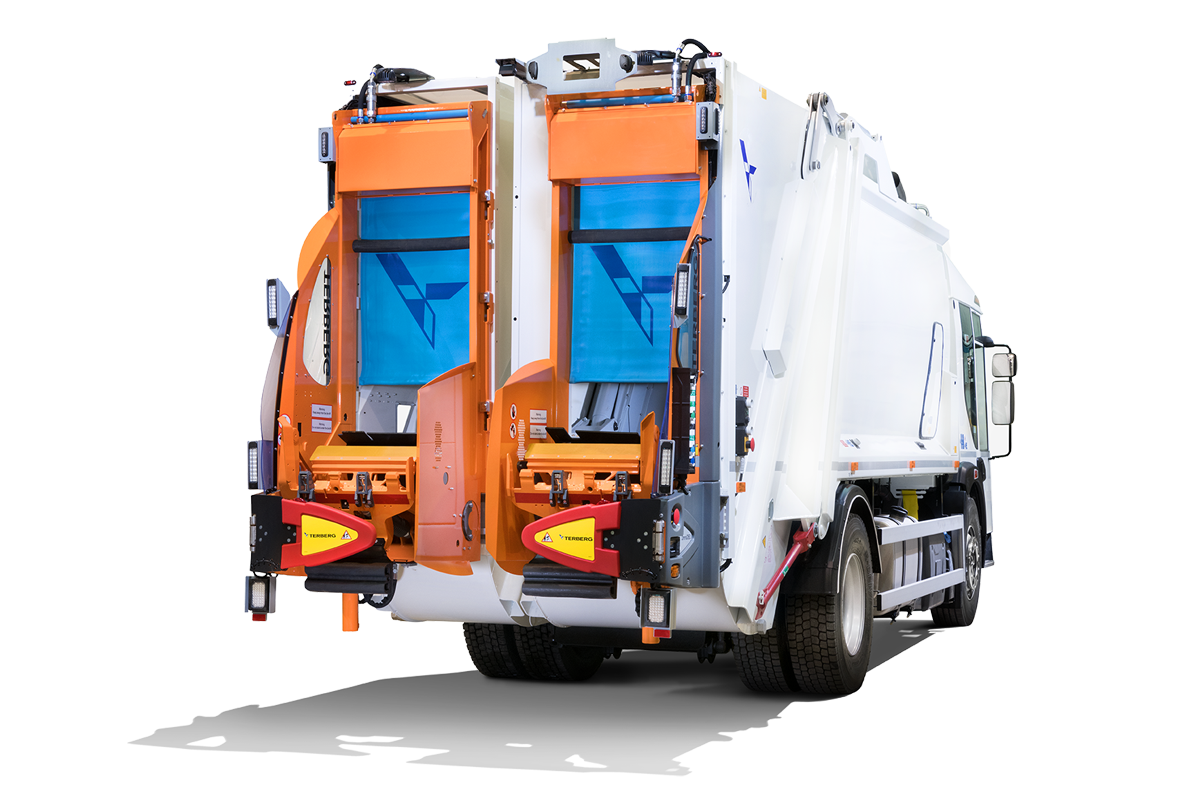

  • Available configurations of division into 50/50 and 35/65 chambers
  • Standardly installed seals between the walls of the load box and the pusher plate
  • Both sides are controlled and operate independently, increasing efficiency and simplifying servicing
  • Available configurations of division into 50/50 and 35/65 chambers
  • Standardly installed seals between the walls of the load box and the pusher plate
  • Both sides are controlled and operate independently, increasing efficiency and simplifying servicing
